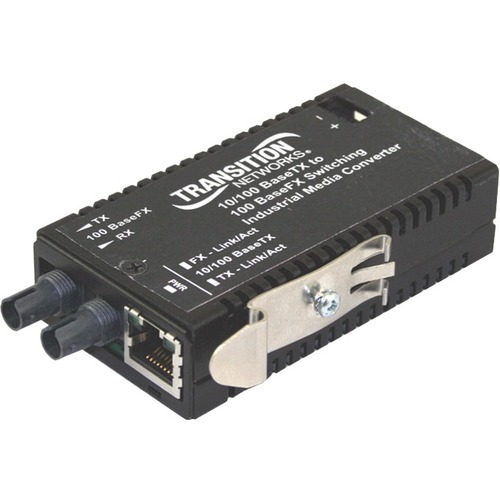

Transition Networks M/E-ISW Transceiver/Media Converter – 1 x Network (RJ-45) – 1 x ST Ports – DuplexST Port – Multi-mode – Fast Ethernet – 10/100Base-TX, 100Base-FX – Rail-mountable, Wall Mountable 10/100BTX TO 100BFX ST MM 2KM
VPN: M/E-ISW-FX-02 UPC: 648177042524 SKU: 5TF787
$230.00
INDUSTRIAL MINI CONVERTER 10/100BTX TO 100BFX ST MM 2KM
Share:
Power Description
| Power Source | Power Supply |
Network & Communication
| Network Technology | 100Base-FX |
| 10/100Base-TX | |
| Ethernet Technology | Fast Ethernet |
Interfaces/Ports
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of ST Ports | 1 |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
General Information
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | M/E-ISW-FX-02 |
| Manufacturer Website Address | http://www.transition.com |
| Manufacturer | Transition Networks, Inc |
| Product Name | M/E-ISW Transceiver/Media Converter |
| Product Series | M/E-ISW |
| Brand Name | Transition Networks |
Media & Performance
| Maximum Distance Supported | 1.24 Mile |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Wavelength | 1300 nm |
Miscellaneous
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| WEEE |
Physical Characteristics
| Weight (Approximate) | 2 lb |
| Form Factor | Wall Mountable |
| Rail-mountable | |
| Height | 0.9" |
| Width | 1.8" |
| Depth | 3.3" |
Transition Networks M/E-ISW Transceiver/Media Converter – 1 x Network (RJ-45) – 1 x ST Ports – DuplexST Port – Multi-mode – Fast Ethernet – 10/100Base-TX, 100Base-FX – Rail-mountable, Wall Mountable 10/100BTX TO 100BFX ST MM 2KM
The M/E-ISW Series is a hardened Fast Ethernet Mini media converter that provides a cost effective, plug-and-play media conversion between 10/100Base-TX ports and 100Base-FX ports for hardened or outdoor 10/100 environments. With its supported operating temperature range of -40°C to 75°C, the Mini offers a space saving alternative for converting copper to fiber in extreme environments.
M%2FE-ISW-FX-02
Features
Unit and Port LEDs provide quick status
Auto-Negotiation
Fixed Full-Duplex on fiber
Auto-MDI/MDIX
Link Pass Through
Active Link Pass Through on SFP version
Automatic Link Restoration
Far-End-Fault (FEF)
DC and AC power inputs via terminal block
Includes barrel connector pig-tail cable
