Tripp Lite 120kVA Smart Online 3-Phase UPS Large Frame Modular 208/120V – 120 kVA / 108 kW – SNMP Manageable, SSH, TelnetHardwired – Input Voltage: 120 V AC, 230 V AC – Output Voltage: 120 V AC, 230 V AC – Tower LARGE FRAME MODULAR 208/120V

recently added items

x

Tripp Lite 120kVA Smart Online 3-Phase UPS Large Frame Modular 208/120V – 120 kVA / 108 kW – SNMP Manageable, SSH, TelnetHardwired – Input Voltage: 120 V AC, 230 V AC – Output Voltage: 120 V AC, 230 V AC – Tower LARGE FRAME MODULAR 208/120V

VPN: SV120KL UPC: 37332203236 SKU: 2DD355

$75,259.80

120KVA SMART ONLINE 3PHASE UPS LARGE FRAME MODULAR 208/120V

SKU: 7fb0c7e666cf Categories: , ,

Share:

Management
Network ManagementTelnet
SSH
SNMP Manageable
Technical Information
Plug/Connector TypeHardwired
PhaseThree Phase
Receptacle TypeHardwired
Miscellaneous
Package Contents
  • SmartOnline SV120KL 120kVA Tower UPS
  • Pre-installed network interface
  • 6 X SV20PM 20kVA power modules
  • Owner's manual
  • DB9 cabling
Country of OriginChina
Environmentally FriendlyYes
Environmental CertificationRoHS
Power Description
Input Voltage230 V AC
120 V AC
230 V AC
120 V AC
Output Voltage230 V AC
120 V AC
Waveform TypePure Sine Wave
Physical Characteristics
Weight (Approximate)1058 lb
Form FactorTower
Height79.1"
Width23.6"
Depth43.3"
General Information
Product TypeDouble Conversion Online UPS
Manufacturer Part NumberSV120KL
Manufacturer Website Addresshttp://www.tripplite.com
ManufacturerTripp Lite by Eaton
Product ModelSV120KL
Product NameSmartOnline SV120KL 120kVA Tower UPS
Product LineSmartOnline
Product SeriesSV
Brand NameTripp Lite

Tripp Lite 120kVA Smart Online 3-Phase UPS Large Frame Modular 208/120V – 120 kVA / 108 kW – SNMP Manageable, SSH, TelnetHardwired – Input Voltage: 120 V AC, 230 V AC – Output Voltage: 120 V AC, 230 V AC – Tower LARGE FRAME MODULAR 208/120V

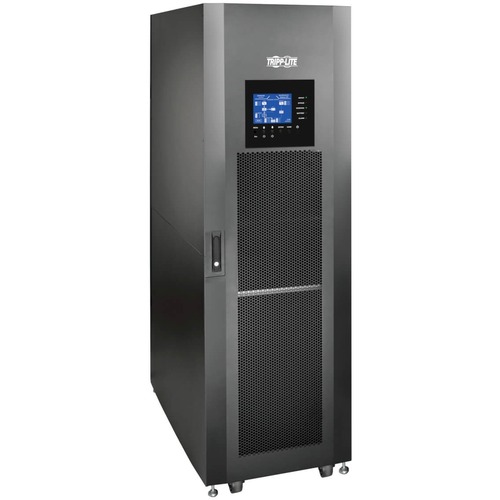

The SV120KL SmartOnline® SV Series 120kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems.The SV120KL includes preinstalled input, bypass and output breakers, as well as a static transfer switch (STS) and six included 20kVA SV20PM power modules. Space is included for up to two additional user-installable SV20PM power modules to accommodate increased capacity up to 140kVA with N+1 fault tolerance. Each power module is rated at 0.9 power factor for maximum power to the connected load.The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 120kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Batteries are not included. External ±120VDC battery cabinets, such as Tripp Lite’s BP240V370, are sold separately.

Tripp%20Lite SV120KL

Features

Scalable capacity up to 140kVA with N+1 redundancy

Economy mode option helps reduce operating and cooling costs

Pre-installed WEBCARDLX network interface for 24/7 remote access

DSP/IGBT technology and 1% output voltage regulation

Batteries not included; external battery cabinets sold separately

Guides & Documents

Brochure

Manual
