Tripp Lite 12U Wall Mount Rack Enclosure Hinged 33″ Depth w Acrylic Window – For LAN Switch, Patch Panel, Server, PDU – 12U Rack Height x 19″ Rack Width x 25.99″ Rack Depth – Wall Mountable – Black Powder Coat – Steel, Acrylic – 250 lb Maximum Weight Capacity – 250 lb Static/Stationary Weight Capacity CABINET SERVER 33IN HINGED ACRYLIC

Tripp Lite 12U Wall Mount Rack Enclosure Hinged 33″ Depth w Acrylic Window – For LAN Switch, Patch Panel, Server, PDU – 12U Rack Height x 19″ Rack Width x 25.99″ Rack Depth – Wall Mountable – Black Powder Coat – Steel, Acrylic – 250 lb Maximum Weight Capacity – 250 lb Static/Stationary Weight Capacity CABINET SERVER 33IN HINGED ACRYLIC

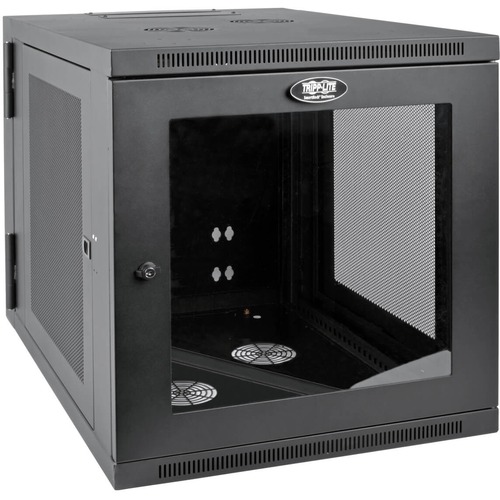

The SRW12US33G SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing 19-inch rack equipment up to 32.5 inches in depth in areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds. The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.The cabinet swings away from the wall on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. To ensure your valuable equipment stays secure, the doors and side panels lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the rack to keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.The SRW12US33G comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 32.5 inches, such as 1U servers, UPS systems, battery packs and switches.

Tripp%20Lite SRW12US33G

Features

Maximum load capacity of 250 lb.

Swings away from wall bracket on a hinge for easy access

Locking steel cabinet vented at sides, top and bottom

Secures 12U of 19 in. rack equipment up to 32.5 in. deep

Mounts to wall or rolls on floor (with optional SRCASTER)

Guides & Documents

Brochure

Manual
