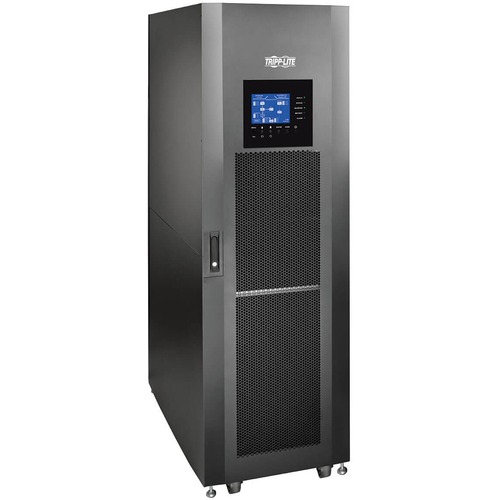

Tripp Lite 140kVA Smart Online 3Phase UPS Modular 208/120V 7 Power Modules – 140 kVA / 126 kW – SNMP Manageable, SSH, TelnetHardwired – Input Voltage: 120 V AC, 230 V AC – Output Voltage: 120 V AC, 230 V AC – Tower MODULAR 208/120V 7 POWER MODULES

recently added items

x

Tripp Lite 140kVA Smart Online 3Phase UPS Modular 208/120V 7 Power Modules – 140 kVA / 126 kW – SNMP Manageable, SSH, TelnetHardwired – Input Voltage: 120 V AC, 230 V AC – Output Voltage: 120 V AC, 230 V AC – Tower MODULAR 208/120V 7 POWER MODULES

VPN: SV140KL7P UPC: 37332196248 SKU: 2DD356

$82,549.80

140KVA SMART ONLINE 3PHASE UPS MODULAR 208/120V 7 POWER MODULES

SKU: c71aebb8dfb0 Categories: , ,

Share:

Management
Network ManagementSSH
Telnet
SNMP Manageable
Technical Information
Plug/Connector TypeHardwired
PhaseThree Phase
Receptacle TypeHardwired
Miscellaneous
Package Contents
  • SmartOnline SV140KL7P 140kVA Tower UPS
  • Pre-installed network interface
  • 7 X SV20PM 20kVA power modules
  • Owner's manual
  • DB9 Cable
Country of OriginChina
Environmentally FriendlyYes
Environmental CertificationRoHS
Power Description
Input Voltage230 V AC
120 V AC
230 V AC
120 V AC
Output Voltage120 V AC
230 V AC
Waveform TypePure Sine Wave
Physical Characteristics
Weight (Approximate)1133.99 lb
Form FactorTower
Height79.1"
Width23.6"
Depth43.3"
General Information
Product TypeDouble Conversion Online UPS
Manufacturer Part NumberSV140KL7P
Manufacturer Website Addresshttp://www.tripplite.com
ManufacturerTripp Lite by Eaton
Product ModelSV140KL7P
Product NameSmartOnline SV140KL7P 140kVA Tower UPS
Product LineSmartOnline
Product SeriesSV
Brand NameTripp Lite

Tripp Lite 140kVA Smart Online 3Phase UPS Modular 208/120V 7 Power Modules – 140 kVA / 126 kW – SNMP Manageable, SSH, TelnetHardwired – Input Voltage: 120 V AC, 230 V AC – Output Voltage: 120 V AC, 230 V AC – Tower MODULAR 208/120V 7 POWER MODULES
The SV140KL7P SmartOnline® SV Series 140kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems.The SV140KL7P includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS) and seven included 20kVA SV20PM power modules. Space is included for one additional user-installable SV20PM power module for N+1 fault tolerance. Each power module is rated at 0.9 power factor for maximum power to the connected load.The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 140kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Batteries are not included. External ±120VDC battery cabinets, such as Tripp Lite’s BP240V370, are sold separately.

Tripp%20Lite SV140KL7P

Features

Scalable capacity up to 140kVA with N+1 redundancy

Economy mode option helps reduce operating and cooling costs

Pre-installed WEBCARDLX network interface for 24/7 remote access

DSP/IGBT technology and 1% output voltage regulation

Batteries not included; external battery cabinets sold separately

Guides & Documents

Brochure

Manual
