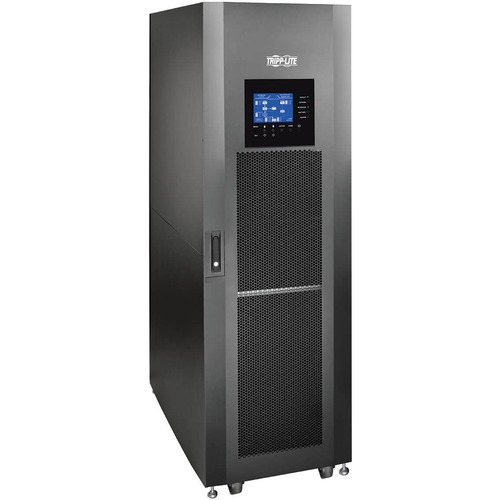

Tripp Lite 20kVA Smart Online 3-Phase UPS Medium Frame Modular 4 Batteries – 24.50 Minute Full Load – 52 Minute Half Load – 20 kVA / 18 kW – SNMP Manageable, SSH, TelnetHardwired – Input Voltage: 120 V AC, 230 V AC – Output Voltage: 120 V AC, 230 V AC – Tower MEDIUM FRAME MODULAR 4 BATTERIES

VPN: SV20KM1P4B UPC: 37332196262 SKU: 2DD365

$53,872.20

20KVA SMART ONLINE 3PHASE UPS MEDIUM FRAME MODULAR 4 BATTERIES

SKU: 6d138626253c Categories: , ,

Share:

Battery Information
Backup/Run Time (Half Load)52 Minute
Backup/Run Time (Full Load)24.50 Minute
Management
Network ManagementTelnet
SSH
SNMP Manageable
Technical Information
Plug/Connector TypeHardwired
PhaseThree Phase
Receptacle TypeHardwired
General Information
Product TypeDouble Conversion Online UPS
Manufacturer Part NumberSV20KM1P4B
Manufacturer Website Addresshttp://www.tripplite.com
ManufacturerTripp Lite by Eaton
Product ModelSV20KM1P4B
Product NameSmartOnline SV20KM1P4B 20kVA Tower UPS
Product LineSmartOnline
Product SeriesSV
Brand NameTripp Lite
Miscellaneous
Package Contents
  • SmartOnline SV20KM1P4B 20kVA Tower UPS
  • Pre-installed WEBCARDLX network interface
  • 1 x SV20PM 20kVA power module
  • 4 x SVBM battery modules
  • Owner's manual
  • DB9 cabling
Country of OriginChina
Environmentally FriendlyYes
Environmental CertificationRoHS
Physical Characteristics
Weight (Approximate)1598.99 lb
Form FactorTower
Height79.1"
Width23.6"
Depth43.3"
Power Description
Input Voltage230 V AC
120 V AC
120 V AC
230 V AC
Output Voltage120 V AC
230 V AC
Waveform TypePure Sine Wave

Tripp Lite 20kVA Smart Online 3-Phase UPS Medium Frame Modular 4 Batteries – 24.50 Minute Full Load – 52 Minute Half Load – 20 kVA / 18 kW – SNMP Manageable, SSH, TelnetHardwired – Input Voltage: 120 V AC, 230 V AC – Output Voltage: 120 V AC, 230 V AC – Tower MEDIUM FRAME MODULAR 4 BATTERIES
The SV20KM1P4B SmartOnline® SV Series 20kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems.The SV20KM1P4B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS), one 20kVA SV20PM power module and four SVBM battery modules. Space is included for up to three additional user-installable SV20PM power modules. External ±120VDC battery options, such as BP240V370, are also available from Tripp Lite for even more extended runtime.The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 20kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Front-panel display offers full UPS condition and status reporting.

Tripp%20Lite SV20KM1P4B

Features

Scalable capacity up to 80kVA (or 60kVA with N+1 fault tolerance)

Economy mode option helps reduce operating and cooling costs

Pre-installed WEBCARDLX network interface for 24/7 remote access

DSP/IGBT technology and 1% output voltage regulation

Includes 4 internal batteries; supports extra external batteries
