Tripp Lite 40kVA 40kW Smart Online 3-Phase UPS 208/120V 220/127V Tower N+1 – 3.70 Minute Full Load – 10.20 Minute Half Load – 40 kVA / 40 kW – SNMP ManageableHardwired – Input Voltage: 120 V AC, 208 V AC – Output Voltage: 120 V AC, 208 V AC 40KW 208/120V 220/127V TOWER DB9
VPN: SUT40K UPC: 37332186713 SKU: 2DB230
$39,411.00
SMART ONLINE UPS 40KVA 3 PHASE 40KW 208/120V 220/127V TOWER DB9
Share:
Management
| Network Management | SNMP Manageable |
Battery Information
| Backup/Run Time (Half Load) | 10.20 Minute |
| Backup/Run Time (Full Load) | 3.70 Minute |
Miscellaneous
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
Physical Characteristics
| Weight (Approximate) | 886 lb |
| Height | 69.3" |
| Width | 20.5" |
| Depth | 31.5" |
General Information
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SUT40K |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer | Tripp Lite by Eaton |
| Product Model | SUT40K |
| Product Name | SmartOnline SUT40K 40kVA Tower UPS |
| Product Line | SmartOnline |
| Product Series | SUT |
| Brand Name | Tripp Lite |
Technical Information
| Application/Usage | Telecommunication |
| Datacenter | |
| Network | |
| Plug/Connector Type | Hardwired |
| Phase | Three Phase |
| Receptacle Type | Hardwired |
Power Description
| Input Voltage | 208 V AC |
| 120 V AC | |
| 120 V AC | |
| 208 V AC | |
| Output Voltage | 120 V AC |
| 208 V AC | |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 120 V AC - 220 V AC |
| 120 V AC - 220 V AC |
Tripp Lite 40kVA 40kW Smart Online 3-Phase UPS 208/120V 220/127V Tower N+1 – 3.70 Minute Full Load – 10.20 Minute Half Load – 40 kVA / 40 kW – SNMP ManageableHardwired – Input Voltage: 120 V AC, 208 V AC – Output Voltage: 120 V AC, 208 V AC 40KW 208/120V 220/127V TOWER DB9

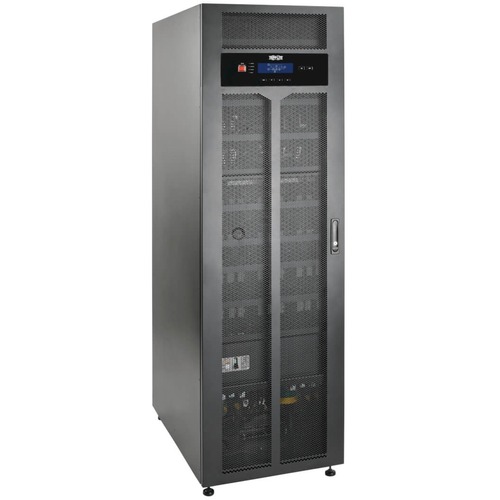

The SUT40K SmartOnline® SUT Series 3-Phase 208/120V 220/127V 40kVA 40kW On-Line Double-Conversion UPS provides complete protection against power interruptions and fluctuations that can contribute to equipment failures and data loss. It’s recommended for critical data center, telecommunications, computer network, light industrial and financial applications. The Voltage and Frequency Independent (VFI) design allows continuous operation at either 50 or 60 Hz. Zero transfer time from online to battery mode ensures no disruption to attached equipment loads. Offering an efficiency of 94% during normal operation and 98% in economy mode, the SUT40K reduces energy losses for cost-saving operation. Automatic bypass keeps connected equipment powered, even during overloads and many potential UPS fault conditions. IGBT inverter technology produces output power with than 2% total harmonic distortion (THDi) to keep connected equipment functioning at its peak. A 3:1 crest factor safely supports a variety of loads, even those with wildly fluctuating power demands. Managing the SUT40K is simplified through the multi-language LCD interface, which displays critical operating conditions and diagnostic data, such as battery and load status. Four LEDs indicate AC, bypass, battery and fault modes. A built-in card slot supports optional remote management cards, such as WEBCARDLX, for comprehensive monitoring and control over a network.
Tripp%20Lite SUT40K
Features
On-line double-conversion topology, VFI operation
1.0 unity power factor supports 40kVA/40kW capacity
Up to 98% economy-mode efficiency option saves energy
Internal batteries included with external battery pack options
Parallel up to 4 units for increased capacity or N+1
