Tripp Lite 6U Wall Mount Rack Enclosure Cabinet Knock Down w/Doors & Sides – 19″ 6U Wide x 16.50″ Deep Wall Mountable for LAN Switch, Patch Panel – Black Powder Coat – Steel – 200 lb x Maximum Weight Capacity – 200 lb x Static/Stationary Weight Capacity SVR CABINET KNOCKDOWN

recently added items

x

Tripp Lite 6U Wall Mount Rack Enclosure Cabinet Knock Down w/Doors & Sides – 19″ 6U Wide x 16.50″ Deep Wall Mountable for LAN Switch, Patch Panel – Black Powder Coat – Steel – 200 lb x Maximum Weight Capacity – 200 lb x Static/Stationary Weight Capacity SVR CABINET KNOCKDOWN

VPN: SRW6UKD UPC: 37332191564 SKU: 4G5374

$323.86

6U WALL MOUNT RACK ENCLOSURE SVR CABINET KNOCKDOWN

SKU: b660bcd2f80d Categories: , ,

Share:

Technical Information
Application/UsagePatch Panel
LAN Switch
FeaturesCable Management
Physical Characteristics
Weight (Approximate)29 lb
Form FactorWall Mountable
Rack Width19"
Rack Height6U
Height14.5"
Width23.6"
Depth17.9"
Maximum Weight Capacity200 lb
Static/Stationary Weight Capacity200 lb
Rack Depth16.50"
Product ColorBlack Powder Coat
Product MaterialSteel
Miscellaneous
Package Contents
  • SmartRack SRW6UKD Rack Cabinet
  • Owner's Manual
  • Assembly Hardware
  • 2 x Top/bottom Panels
  • 2 x Side
  • Equipment Mounting Hardware
  • 12 x 12-24 Screws
  • 12 x M6 Cage Nuts
  • 12 x M6 Sup Washers
Country of OriginChina
Assembly RequiredYes
Environmentally FriendlyYes
Environmental CertificationRoHS
General Information
Product TypeRack Cabinet
Manufacturer Part NumberSRW6UKD
Manufacturer Website Addresshttp://www.tripplite.com
ManufacturerTripp Lite by Eaton
Product ModelSRW6UKD
Product NameSmartRack SRW6UKD Rack Cabinet
Product LineSmartRack
Brand NameTripp Lite

Tripp Lite 6U Wall Mount Rack Enclosure Cabinet Knock Down w/Doors & Sides – 19″ 6U Wide x 16.50″ Deep Wall Mountable for LAN Switch, Patch Panel – Black Powder Coat – Steel – 200 lb x Maximum Weight Capacity – 200 lb x Static/Stationary Weight Capacity SVR CABINET KNOCKDOWN

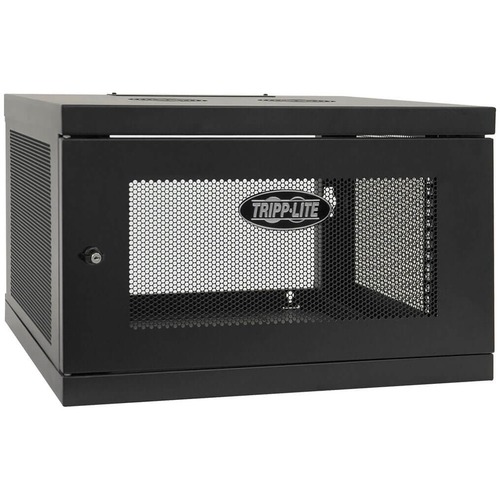

The SRW6UKD SmartRack® 6U Low-Profile Switch-Depth Knock-Down Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The front door locks securely to help prevent damage, tampering and theft. The front, top, bottom and side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can be installed to open left or right. Convenient top and bottom ports allow easy cable routing.The SRW6UKD comes unassembled for convenient transport and storage in confined spaces. It easily assembles in minutes using just 12 fasteners, and mounts to the wall to save valuable floor space. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.

Tripp%20Lite SRW6UKD

Features

Ships unassembled for easy transport and storage

Maximum load capacity of 200 lb.

Locking steel cabinet vented at sides, front, top and bottom

Flow-through ventilation keeps equipment cool

Mounts to wall to save valuable floor space
