Tripp Lite DisplayPort KVM Cable Kit 4K USB 3.5mm Audio 3xM/3xM USB M/M 6ft – 5.91 ft KVM Cable for KVM Switch, Computer – First End: 1 x Mini-phone Male Audio, First End: 1 x DisplayPort Male Digital Audio/Video, First End: 1 x Type A Male USB – Second End: 1 x Mini-phone Male Audio, Second End: 1 x DisplayPort Male Digital Audio/Video, Second End: 1 x Type B Male USB – 60 MB/s – Supports up to 3840 x 2160 – Gold Plated Contact – Black 4K USB 3.5MM AUDIO 3XM/3XM USB M/M

Tripp Lite DisplayPort KVM Cable Kit 4K USB 3.5mm Audio 3xM/3xM USB M/M 6ft – 5.91 ft KVM Cable for KVM Switch, Computer – First End: 1 x Mini-phone Male Audio, First End: 1 x DisplayPort Male Digital Audio/Video, First End: 1 x Type A Male USB – Second End: 1 x Mini-phone Male Audio, Second End: 1 x DisplayPort Male Digital Audio/Video, Second End: 1 x Type B Male USB – 60 MB/s – Supports up to 3840 x 2160 – Gold Plated Contact – Black 4K USB 3.5MM AUDIO 3XM/3XM USB M/M

VPN: P783-006-U UPC: 37332241658 SKU: 6XK614

$71.72

6FT DISPLAYPORT KVM CABLE KIT 4K USB 3.5MM AUDIO 3XM/3XM USB M/M

SKU: 499a37cdb4da Categories: , ,

Share:

Physical Characteristics
Product ColorBlack
Technical Information
Cable Length6 ft
Data Transfer Rate480 Mbit/s
Device SupportedKVM Switch
Computer
FeaturesHDCP 2.2
Connector Type on First EndUSB 2.0 Type A - Male
Mini-phone Audio - Male
DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second EndUSB 2.0 Type B - Male
DisplayPort 1.2 Digital Audio/Video - Male
Mini-phone Audio - Male
Supported Resolution3840 x 2160
3840 x 2160
Contact PlatingGold
Connector on First End Details1 x Mini-phone Audio - Male
1 x DisplayPort 1.2 Digital Audio/Video - Male
1 x USB 2.0 Type A - Male
Connector on Second End Details1 x Mini-phone Audio - Male
1 x DisplayPort 1.2 Digital Audio/Video - Male
1 x USB 2.0 Type B - Male
Miscellaneous
Package Contents
  • KVM Cable
  • U022-006 USB A/B Cable (M/M), 6 ft.
CompatibilityTripp Lite B002-HD1AC4 NIAP KVM Switch
Country of OriginChina
Environmentally FriendlyYes
Environmental CertificationRoHS
General Information
Product TypeKVM Cable
Manufacturer Part NumberP783-006-U
Manufacturer Website Addresshttp://www.tripplite.com
ManufacturerTripp Lite by Eaton
Product ModelP783-006-U
Product NameKVM Cable
Brand NameTripp Lite

Tripp Lite DisplayPort KVM Cable Kit 4K USB 3.5mm Audio 3xM/3xM USB M/M 6ft – 5.91 ft KVM Cable for KVM Switch, Computer – First End: 1 x Mini-phone Male Audio, First End: 1 x DisplayPort Male Digital Audio/Video, First End: 1 x Type A Male USB – Second End: 1 x Mini-phone Male Audio, Second End: 1 x DisplayPort Male Digital Audio/Video, Second End: 1 x Type B Male USB – 60 MB/s – Supports up to 3840 x 2160 – Gold Plated Contact – Black 4K USB 3.5MM AUDIO 3XM/3XM USB M/M

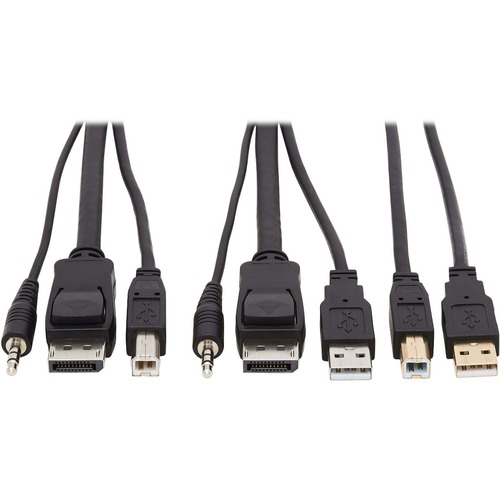

6 ft. Cables Connect Your DisplayPort Computer to a Tripp Lite NIAP KVM Switch with CAC This DisplayPort cable kit includes two 6-foot cables for connecting a computer to a KVM switch with a Common Access Card (CAC) port. The P783-006 features DisplayPort, USB A/B and 3.5 mm audio connectors on both ends for connecting your computer to a KVM switch. The U022-006 is a USB cable that connects to the KVM’s CAC port for accessing smart cards, scanners and biometric readers, including fingerprint readers, to bolster security. Specifically Designed for Select Tripp Lite KVMs to Save You Time and Money Recommended for the Tripp Lite B002-HD1AC4 NIAP KVM, the DisplayPort cable supports video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with true 4:4:4 chroma subsampling. The USB cables also support USB 2.0 data transfer speeds up to 480 Mbps. By combining several different cables into one convenient kit, you cut down on unnecessary clutter and costs.

Tripp%20Lite P783-006-U

Features

Cuts cable clutter and saves money by combining essential KVM cables into just 2

6 ft. 3-in-1 DP, USB A/B and 3.5 mm audio cable connects KVM to your computer

Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz

Supports true 4:4:4 chroma subsampling to meet latest color standards

6 ft. USB A/B cable included for KVM’s CAC port (smart cards, scanners, etc.)

This product is covered by a Lifetime Limited Warranty
