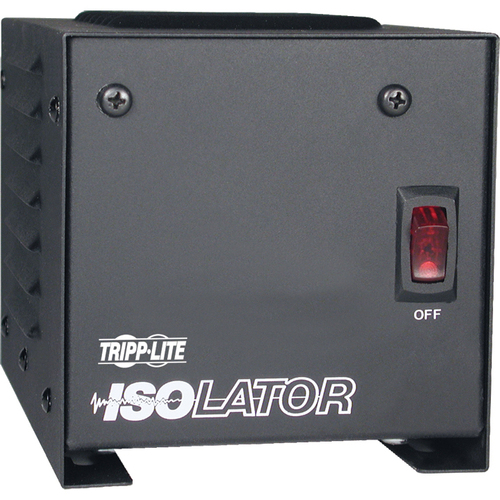

Tripp Lite Isolation Transformer 250W Surge 120V 2 Outlet 6′ Cord TAA GSA – Receptacles: 2 x NEMA 5-15R – 680J 120V POWER CONDITIONER 2 OUT 5-15P

VPN: IS250 UPC: 37332070043 SKU: 114936

$254.60

250W ISOLATION TRANSFORMER 120V POWER CONDITIONER 2 OUT 5-15P

SKU: 994e7455ba57 Categories: , ,

Share:

Technical Information
Protection TypeSurge
Receptacles2 x NEMA 5-15R
2 x NEMA 5-15R
Plug/Connector TypeNEMA 5-15P
General Information
Product TypeSurge Suppressor/Protector
Manufacturer Part NumberIS250
Manufacturer Website Addresshttp://www.tripplite.com
ManufacturerTripp Lite by Eaton
Product ModelIS250
Product NameIS250 Isolation Transformer System
Brand NameTripp Lite
Miscellaneous
Additional Information
    • Let-through Voltage (Combination Wave): L-N: <130V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. B
    • Let-through Voltage (Ring Wave): L-N: <10V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. A
    • Noise Suppression Rating: 33-65dB normal mode; >80dB common mode
    • Surge Test Conditions: Per ANSI/IEEE C62.41 - (IEEE587) Cat. A & B test waveforms
    • Total Harmonic Distortion: than 1%
    • Transformer Type: Low impedence isolation transformer
Package Contents
  • IS250 Isolation Transformer System
  • Instruction Manual with Warranty Information
Compatibility
    • Point of Sale (POS) Equipment
    • Telecommunications Systems
    • Diagnostic Testing and Precise Measurement Devices
    • Sophisticated CAD/CAM Workstations
    • Computer Networking Equipment
Certifications & StandardsUL, cUL
Country of OriginTaiwan
Environmentally FriendlyYes
Environmental CertificationRoHS
TAA CompliantYes
Power Description
Circuit BreakerYes
Input Voltage120 V AC
120 V AC
Power Handling250 VA
Output Voltage120 V AC
120 V AC
Surge Energy Rating680 J
Maximum Line Current2.10 A
Physical Characteristics
Shipping Weight (Approximate)13.20 lb
Weight (Approximate)12.80 lb
Form FactorExternal
Height4.8"
Width4.8"
Depth7.5"
Shipping Height7.09"
Shipping Width7.09"
Shipping Depth10.04"
Power Cord/Cable Length6 ft
Product ColorBlack

Tripp Lite Isolation Transformer 250W Surge 120V 2 Outlet 6′ Cord TAA GSA – Receptacles: 2 x NEMA 5-15R – 680J 120V POWER CONDITIONER 2 OUT 5-15P
Tripp Lite Isolator series isolation transformer-based power conditioners offer complete line isolation, continuous noise filtering and enhanced normal and common mode surge suppression. Internal low-impedance isolation transformer component with Faraday Shield offers 100% isolation from the input AC line. Secondary neutral to ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment and an inexpensive alternative to the installation of dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients, background spikes generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at both the line input and transformer output combined with full line isolation offers continuous line filtering of a full range of power line noise in all modes. Continuous transformer filtering with no wearable parts uniquely reduces surges in the worst of power environments to harm levels. Reduces 6000V IEEE C62.41 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS250 offers 250 watts capacity with 2 widely spaced output receptacles, a 6-ft power cord, circuit breaker overload protection and lighted power switch. Rugged all-metal unit housing ships ready for upright tower or wallmount placement in industrial, medical, office or network environment.

Tripp%20Lite IS250

Features

Complete line isolation, noise filtering and surge suppression is ideal for sensitive equipment

250 watts, 2 outlets, 6-ft. power cord

Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
