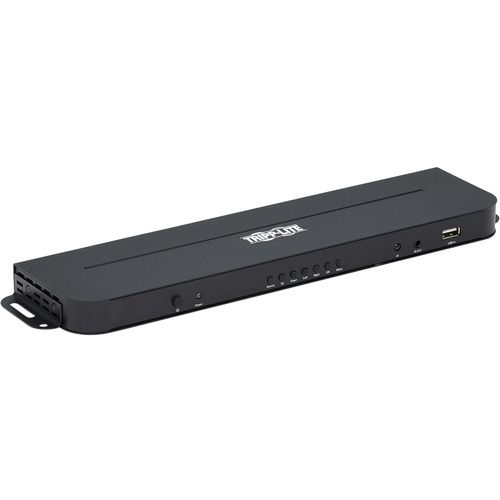

Tripp Lite Presentation Switch Multi-Format 7-Port 4K HDMI DP VGA YPbPr AV – 4096 x 2160 – 4K – 5 x 1 – 1 x HDMI Out – 1 x DisplayPort In MULTI-FORMAT HDMI DP VGA YPBPR AV

Tripp Lite Presentation Switch Multi-Format 7-Port 4K HDMI DP VGA YPbPr AV – 4096 x 2160 – 4K – 5 x 1 – 1 x HDMI Out – 1 x DisplayPort In MULTI-FORMAT HDMI DP VGA YPBPR AV
Features | 7-Port Multi-Format Presentation Switch Connects 7 Video Sources to One HDMI Display This presentation switch connects seven separate digital and analog source devices to your television, projector or monitor’s HDMI input and switches between them. The B310-701-4K features HDMI, DisplayPort, VGA + Audio, Component (YPbPr) and Composite (Y) inputs for connecting Windows laptops, cable boxes, media servers, DVD and Blu-ray players, video game consoles and other video sources. Switch from one source to another using the manual push buttons or the included remote control.Suitable for a Wide Range of Audio/Video Applications for Work or Play This switch is recommended anywhere a variety of video signals is transmitted to a high-definition display. It is suitable for home theaters, video and multimedia presentations, security applications or digital signage in classrooms, bars, restaurants, conference rooms, lecture halls, exhibition centers and trade shows.Transmits Video from an Upscaled 1080p All the Way to True 4K Video resolutions include true 4K (4096 x 2160) at 60 Hz (HDMI), 4K (3840 x 2160) at 60 Hz (DisplayPort), 1280 x 768 at 60 Hz (VGA), 1920 x 1080 at 60 Hz (Component YPbPr) and 1280 x 720 at 60 Hz (Composite Y). This switch automatically upscales lower-resolution content to fit the screen. Use the menu options to change picture mode, aspect ratio, resolution output of each port, color temperature and sound output.Supports HDCP 2.2 and 4:4:4 Color for Up-to-Date Presentations HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. You can also connect a U-disk for audio (MP3), video (MP4, WMA), picture (JPG, BMP) or text (English) via the front-panel USB 2.0 port.Built-In Audio Extractor Lets You Control Sound TOSLINK, coaxial and RCA right/left audio ports allow you to connect an amplifier, receiver, soundbar or speakers for optical, digital or analog sound. All three audio ports can be used simultaneously. The B310- 701-4K supports uncompressed LPCM digital audio, compressed DTS Digital and Dolby Digital (including DTS-HD and Dolby True HD) digital audio and analog audio.Plug-and-Play Operation for Quick Setup and Immediate Use The switch works right out of the box with no software required. Mounting hardware is included for installing the switch on a wall, pole or 19-inch rack. Connect your devices to the switch’s ports with usersupplied cables (sold separately), and plug the switch’s external power supply into an AC power source.

Tripp%20Lite B310-701-4K

Features

DisplayPort and HDMI ports support UHD resolutions up to 4K @ 60 Hz (4:4:4)

Push buttons or IR remote allows seam switching between multiple video sources

Digital (TOSLINK, coaxial) and analog (R/L) audio outputs work simultaneously

Upscaler function improves the quality of analog video transmitted to hi-def display

Guides & Documents

Brochure

Manual
