Tripp Lite Programmable RS-485 Management Accessory Card for Select 3-Phase UPS Systems – Serial PROGRAMMABLE SELECT 3-PHASE UPS

Name: Tripp Lite Programmable RS-485 Management Accessory Card for Select 3-Phase UPS Systems – Serial PROGRAMMABLE SELECT 3-PHASE UPS
Price: 362.00 USD
Availability: InStock
Rating: 4.5 (120 reviews)

VPN: MODBUSCARDSV UPC: 37332241351 SKU: 7GT423

$362.00

RS485 MANAGEMENT ACCESSORY CARD PROGRAMMABLE SELECT 3-PHASE UPS

SKU: adb9f6b7134a Categories: Power & Rack Equipment, Power Equipment, UPS Management Adapter Tripp Lite

Technical Specs
Description

Interfaces/Ports

Serial

Yes

Technical Information

Protocols	Modbus RTU
Management	Monitoring & Control

General Information

Product Type	UPS Management Adapter
Manufacturer Part Number	MODBUSCARDSV
Manufacturer Website Address	http://www.tripplite.com
Manufacturer	Tripp Lite by Eaton
Product Model	MODBUSCARDSV
Product Name	Programmable RS-485 Management Accessory Card for Select 3-Phase UPS Systems
Brand Name	Tripp Lite

Physical Characteristics

Weight (Approximate)	2.82 oz
Height	1.3"
Width	2.6"
Depth	5.1"

Miscellaneous

Package Contents	Programmable RS-485 Management Accessory Card for Select 3-Phase UPS Systems Owner's Manual
Compatibility	Tripp Lite 3-Phase UPS Systems: SVTX (400V) SVX (400V) SV (208V) S3M (400V) S3MX/XD
Country of Origin	China
Environmentally Friendly	Yes
Environmental Certification	RoHS

Tripp Lite Programmable RS-485 Management Accessory Card for Select 3-Phase UPS Systems – Serial PROGRAMMABLE SELECT 3-PHASE UPS

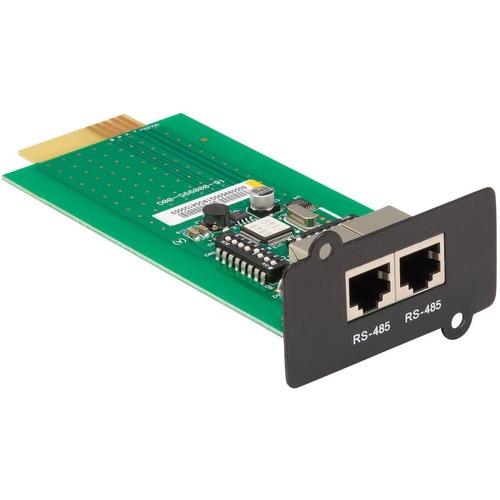

This programmable Modbus card installs into select Tripp Lite 3-phase UPS systems, allowing the UPS to communicate with a computer via RS-485 serial interface. The MODBUSCARDSV implements Modbus RTU protocol within Building Management Systems (BMS) and Industrial Automation Systems (IAS). It provides certain Modbus functions, such as Read Holding Registers and Write Single Registers. Dual sets of DIP switches (eight to a set) support Card ID and RS-485 configurations. Compatible with Tripp Lite’s SV Series (208V modular), SVX Series (400V modular), and 400V Monoblock SVTX, S3MX/XD Series UPS systems for status monitoring, configuration, control and email notifications.

Tripp%20Lite MODBUSCARDSV

Guides & Documents

Brochure

Manual

Tripp Lite Programmable RS-485 Management Accessory Card for Select 3-Phase UPS Systems – Serial PROGRAMMABLE SELECT 3-PHASE UPS
