Tripp Lite UPS 1500VA 940W Battery Back Up Tower AVR 120V USB RJ11 RJ45 – Tower – 4 Hour Recharge – 5 Minute Stand-by – 110 V AC Input – 120 V AC Output – 2 x NEMA 5-15R, 6 x NEMA 5-15R 8 OUTLET USB TEL/DSL EXTENDED RUN

recently added items

x

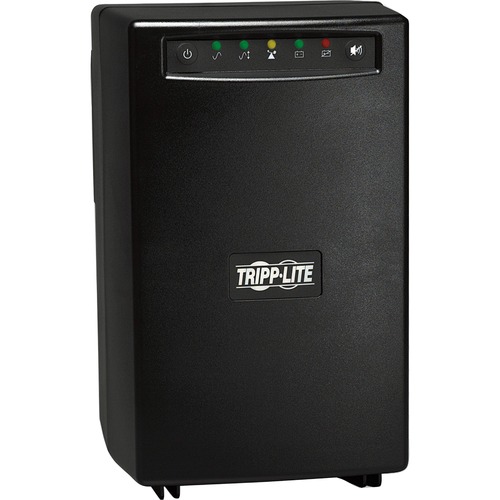

Tripp Lite UPS 1500VA 940W Battery Back Up Tower AVR 120V USB RJ11 RJ45 – Tower – 4 Hour Recharge – 5 Minute Stand-by – 110 V AC Input – 120 V AC Output – 2 x NEMA 5-15R, 6 x NEMA 5-15R 8 OUTLET USB TEL/DSL EXTENDED RUN

VPN: OMNIVS1500XL UPC: 37332119735 SKU: D86056

$496.08

UPS 1500VA 940W TOWER AVR 120V 8 OUTLET USB TEL/DSL EXTENDED RUN

SKU: fa3f137cea6d Categories: , ,

Share:

Controls/Indicators
Status Indicators4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage regulation operation
Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Interfaces/Ports
USBYes
Management
AlarmOn Battery
Warranty
Additional Warranty Information

$200,000 connected equipment insurance (USA, Puerto Rico & Canada Only)

Battery Information
Battery Life6 Year
Hot SwappableYes
Backup/Run Time (Half Load)14 Minute
Backup/Run Time (Full Load)5 Minute
Typical Battery Recharge Time4 Hour
Power Description
Input Voltage110 V AC
110 V AC
Output Voltage120 V AC
120 V AC
Surge Energy Rating480 J
Technical Information
Dataline ProtectionRJ-45
Plug/Connector TypeNEMA 5-15P
Cord Length6 ft
Receptacle TypeNEMA 5-15R
Transfer Time4 ms
Receptacle Detail2 x NEMA 5-15R
6 x NEMA 5-15R
Miscellaneous
Additional Information
    • OMNIVS1500XL Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support
    • Supports entry level PCs up to 75 minutes during blackouts to enable shutdown without data loss
    • Regulates brownouts as low as 75 and overvoltages to 147V back to usable 120V nominal levels without using battery power
    • 6 UPS battery supported outlets, plus 2 additional surge suppression-only outlets
    • USB port and cable enables UPS monitoring and unattended shutdown in the case of extended power failure
    • PowerAlert software available via free download from www.tripplite.com
    • Dataline surge suppression protects standard dialup/DSL or ethernet line connection
    • Audible alarm and 4 front panel LEDs offer complete UPS and line power status information
    • 1500VA power handling ability supports a variety of sensitive electronic equipment
    • 5 minutes full load runtime (1500VA), 14 minutes half load runtime (750VA)
    • Runtime is further expandable with the addition of BP24V14 external battery pack
    • Supports hot swappable battery replacement via built-in access panel
    • $200,000 connected equipment insurance (USA & Canada Only)
    • 2 year warranty
Package Contents
  • OMNIVS1500XL Line Interactive UPS
  • USB and telephone cable
  • User manual with warranty information
Certifications & Standards
    • UL1778 (USA)
    • cUL (Canada)
    • FCC Class B (emissions)
    • NOM (Mexico)
    • FCC Part 68 / Industry Canada (telecommunications)
Country of OriginChina
RecycledNo
Assembly RequiredNo
Physical Characteristics
Weight (Approximate)32.20 lb
Form FactorTower
Height11.8"
Width7.3"
Depth7.5"
Product ColorBlack
General Information
Product TypeLine-interactive UPS
Manufacturer Part NumberOMNIVS1500XL
Manufacturer Website Addresshttp://www.tripplite.com
Packaged Quantity1 Each
1 Each
ManufacturerTripp Lite by Eaton
Product Name8-Outlet UPS Power Protection System
Product LineOmni
Product SeriesVS
Brand NameTripp Lite

Tripp Lite UPS 1500VA 940W Battery Back Up Tower AVR 120V USB RJ11 RJ45 – Tower – 4 Hour Recharge – 5 Minute Stand-by – 110 V AC Input – 120 V AC Output – 2 x NEMA 5-15R, 6 x NEMA 5-15R 8 OUTLET USB TEL/DSL EXTENDED RUN
Line Interactive UPS system with eight outlets offers voltage regulation, surge suppression and long-lasting, expandable battery support for personal computers, Internet-working equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 75 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation circuits regulate brownouts as low as 75 and overvoltages up to 147 volts back to usable 120V levels without using battery power. Includes six battery supported outlets for computer, monitor and one vital system peripheral, plus two additional surge suppression-only outlets for printers and other system accessories not requiring battery support. Built-in dataline suppression offers protection for equipment with single-line telephone/DSL or network Ethernet connection. Offers 5 minute battery runtime with a full load of 1500VA and 14 minutes with a half load of 750VA.

Tripp%20Lite OMNIVS1500XL

Features

1500VA / 1.5kVA tower 120V line interactive extended-run UPS

Corrects brownouts and overvoltages from 75 to 147V

6 UPS battery supported outlets, 2 surge-only outlets

USB port, TEL/DSL/ethernet protection, External battery pack options

NEMA 5-15P input plug and 8 NEMA 5-15R outlets
