Tripp Lite UPS 20kVA Smart Online 3-Phase Small Frame Modular 1 Battery – 3.90 Minute Full Load – 8 Minute Half Load – 20 kVA / 18 kW – SNMP Manageable, SSH, TelnetHard Wire 4-wire (3P + N + E) – Input Voltage: 120 V AC, 230 V AC – Output Voltage: 120 V AC, 230 V AC – Tower DIRECT SHIP DUE TO PACKAGING

recently added items

x

Tripp Lite UPS 20kVA Smart Online 3-Phase Small Frame Modular 1 Battery – 3.90 Minute Full Load – 8 Minute Half Load – 20 kVA / 18 kW – SNMP Manageable, SSH, TelnetHard Wire 4-wire (3P + N + E) – Input Voltage: 120 V AC, 230 V AC – Output Voltage: 120 V AC, 230 V AC – Tower DIRECT SHIP DUE TO PACKAGING

VPN: SV20KS1P1B UPC: 37332196286 SKU: 2KL115

$32,981.40

SMART ONLINE 3PHASE UPS 20KVA DIRECT SHIP DUE TO PACKAGING

SKU: 2e6cf272334b Categories: , ,

Share:

Battery Information
Backup/Run Time (Half Load)8 Minute
Backup/Run Time (Full Load)3.90 Minute
Management
Network ManagementTelnet
SSH
SNMP Manageable
Technical Information
Plug/Connector TypeHardwired
PhaseThree Phase
Receptacle TypeHard Wire 4-wire (3P + N + E)
Power Description
Input Voltage120 V AC
230 V AC
120 V AC
230 V AC
Output Voltage230 V AC
120 V AC
Waveform TypePure Sine Wave
Input Voltage Range120 V AC - 220 V AC
120 V AC - 220 V AC
Miscellaneous
Package Contents
  • SmartOnline SV 20KVA Tower UPS
  • Pre-installed WEBCARDLX Network Interface
  • 1 x SV20PM 20kVA Power Module
  • 1 x SVBM Battery module
  • DB9 Cabling
  • Owner's Manual
Country of OriginChina
Environmentally FriendlyYes
Environmental CertificationRoHS
Physical Characteristics
Weight (Approximate)901 lb
Form FactorTower
Height58.1"
Width23.6"
Depth43.3"
General Information
Product TypeDouble Conversion Online UPS
Manufacturer Part NumberSV20KS1P1B
Manufacturer Website Addresshttp://www.tripplite.com
ManufacturerTripp Lite by Eaton
Product NameSmartOnline SV 20KVA Tower UPS
Product LineSmartOnline
Product SeriesSV
Brand NameTripp Lite

Tripp Lite UPS 20kVA Smart Online 3-Phase Small Frame Modular 1 Battery – 3.90 Minute Full Load – 8 Minute Half Load – 20 kVA / 18 kW – SNMP Manageable, SSH, TelnetHard Wire 4-wire (3P + N + E) – Input Voltage: 120 V AC, 230 V AC – Output Voltage: 120 V AC, 230 V AC – Tower DIRECT SHIP DUE TO PACKAGING

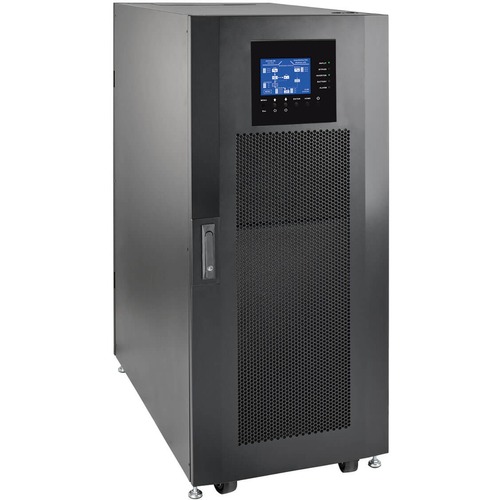

Overview The SV20KS1P1B SmartOnline® SV Series 20kVA Small-Frame 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system with a high 0.9 power factor is ideal for protecting a variety of critical IT systems.The SV20KS1P1B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS), one 20kVA SV20PM power module and one SVBM battery module. Space is included for up to two additional user-installable SV20PM power modules and two SVBM internal battery modules. External ±120VDC battery options, such as BP240V370, are also available from Tripp Lite for even more extended runtime.

Tripp%20Lite SV20KS1P1B

Features

Scalable capacity up to 60kVA (or 40kVA with N+1 fault tolerance)

Economy mode option helps reduce operating and cooling costs

Pre-installed WEBCARDLX network interface for 24/7 remote access

DSP/IGBT technology and 1% output voltage regulation

Includes internal battery module; supports up to 2 more
