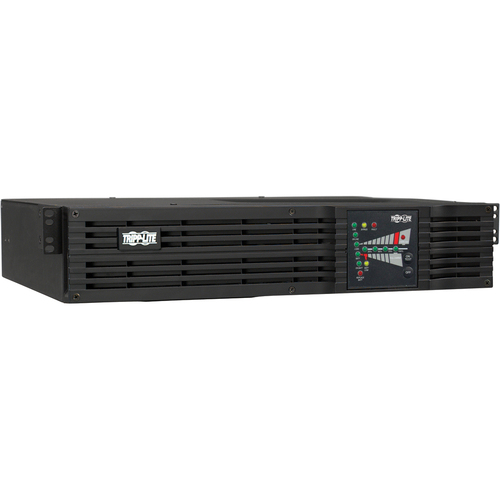

Tripp Lite UPS 2200VA 1600W Smart Online Rackmount 110V/120V USB DB9 2URM – 2200VA/1600W – 4.5 Minute Full Load – 6 x NEMA 5-15/20R – Battery/Surge-protected, 1 x NEMA L5-20R – Battery/Surge-protected 1600W 2U USB DB9 RS232 EPO 7 OUT

recently added items

x

Tripp Lite UPS 2200VA 1600W Smart Online Rackmount 110V/120V USB DB9 2URM – 2200VA/1600W – 4.5 Minute Full Load – 6 x NEMA 5-15/20R – Battery/Surge-protected, 1 x NEMA L5-20R – Battery/Surge-protected 1600W 2U USB DB9 RS232 EPO 7 OUT

VPN: SU2200RTXL2UA UPC: 37332042224 SKU: G67473

$2,125.80

SMART ONLINE UPS 2200VA 120V RM 1600W 2U USB DB9 RS232 EPO 7 OUT

SKU: 046c594b019b Categories: , ,

Share:

Management
Network ManagementSNMP Manageable
Interfaces/Ports
USBYes
Serial PortYes
Battery Information
Hot SwappableYes
Backup/Run Time (Half Load)14 Minute
Backup/Run Time (Full Load)4.50 Minute
Typical Battery Recharge Time5 Hour
Miscellaneous
Package Contents
  • SmartOnline SU2200RTXL2UA 2200VA Tower/Rack Mountable UPS
  • PowerAlert software CD-ROM and complete cabling
  • Mounting hardware for 4 post rack enclosures
  • Instruction manual with warranty information
Software IncludedPowerAlert UPS Monitoring Software
Certifications & Standards
    • Tested to UL1778 (USA)
    • CSA C22.2 No. 107.3 (Canada)
    • NOM (Mexico)
    • Class A (emissions)
    • FCC Part 68 / Industry Canada
Country of OriginChina
Physical Characteristics
Weight (Approximate)47.40 lb
Form FactorTower
Rack Height2U
Height3.5"
Width17.5"
Depth19"
Technical Information
Dataline ProtectionRJ-45
Emergency Power OFFYes
Plug/Connector TypeNEMA 5-20P
Receptacle TypeNEMA 5-15/20R
NEMA L5-20R
Receptacle Detail1 x NEMA 5-15/20R
6 x NEMA L5-20R
General Information
Product TypeDouble Conversion Online UPS
Manufacturer Part NumberSU2200RTXL2UA
Manufacturer Website Addresshttp://www.tripplite.com
ManufacturerTripp Lite by Eaton
Product ModelSU2200RTXL2UA
Product NameSmartOnline SU2200RTXL2UA 2200VA Tower/Rack Mountable UPS
Product LineSmartOnline
Brand NameTripp Lite
Power Description
Input Voltage110 V AC
110 V AC
120 V AC
120 V AC
Output Voltage110 V AC
110 V AC
120 V AC
120 V AC
Input Current16 A

Tripp Lite UPS 2200VA 1600W Smart Online Rackmount 110V/120V USB DB9 2URM – 2200VA/1600W – 4.5 Minute Full Load – 6 x NEMA 5-15/20R – Battery/Surge-protected, 1 x NEMA L5-20R – Battery/Surge-protected 1600W 2U USB DB9 RS232 EPO 7 OUT
SmartOnline SU2200RTXL2UA 2200VA Tower/Rack Mountable UPS ideal for protection of critical 120V equipment in server rooms, internetworking closets and telecommunications systems in rack mount or tower applications. Common applications include corporate or departmental servers, workstations, hubs, routers, bridges, CAD/CAM workstations, concentrators, IP telephony and traditional PBX switching systems.

Tripp%20Lite SU2200RTXL2UA

Features

2200VA / 2.2kVA / 1600 watt on-line double-conversion 2U rack/tower UPS

110/120V +/-2% output at 50/60Hz, high efficiency economy mode option

Expandable runtime, Hot-swap batteries; 19 in / 48.3cm installed depth

USB, RS232 & EPO ports; support for SNMP/WEB card options
