Tripp Lite UPS 2200VA 1600W Smart Online Tower 110V / 120V USB DB9 SNMP RT – 2200VA/1600W – 4.5 Minute Full Load – 6 x NEMA 5-15/20R, 1 x NEMA L5-20R 1600W TOWER USB DB9 EXT RUN 7 OUT

VPN: SU2200XLA UPC: 37332126566 SKU: N18279

$1,751.40

SMART ONLINE UPS 2200VA 120V 1600W TOWER USB DB9 EXT RUN 7 OUT

SKU: 958caed63c03 Categories: , ,

Share:

Interfaces/Ports
USBYes
Management
Network ManagementSNMP Manageable
Battery Information
Hot SwappableYes
Backup/Run Time (Half Load)14 Minute
Backup/Run Time (Full Load)4.50 Minute
Typical Battery Recharge Time6 Hour
Physical Characteristics
Weight (Approximate)52.70 lb
Form FactorTower
Height10.3"
Width9"
Depth19.5"
Miscellaneous
Additional Information
    • Removes harmonic distortion, electrical impulses, frequency variations and other hard-to-solve power problems
    • Compatible with Tripp Lite's WatchDog Service Monitoring and Control Software
    • Diagnostic LEDs
Package Contents
  • SmartOnline SU2200XLa 2200VA Tower UPS
  • SU2200XLa On-line Double-Conversion UPS System
  • PowerAlert Software and cabling
  • Instruction manual with warranty information
  • EPO (Emergency Power Off) cabling
Software IncludedPowerAlert Software
Certifications & StandardsUL1778 (USA), CSA (Canada), NOM (Mexico), Class A (emissions), FCC Part 68/Industry Canada, RoHS compliant
Country of OriginChina
Environmental CertificationRoHS
General Information
Product TypeDouble Conversion Online UPS
Manufacturer Part NumberSU2200XLA
Manufacturer Website Addresshttp://www.tripplite.com
ManufacturerTripp Lite by Eaton
Product ModelSU2200XLa
Product NameSmartOnline SU2200XLa 2200VA Tower UPS
Product LineSmartOnline
Brand NameTripp Lite
Power Description
Input Voltage110 V AC
120 V AC
110 V AC
120 V AC
Output Voltage120 V AC
110 V AC
120 V AC
110 V AC
Technical Information
Bypass SwitchAutomatic
Dataline ProtectionRJ-45
Emergency Power OFFYes
Plug/Connector TypeNEMA 5-20P
NEMA 5-15P
Receptacle TypeNEMA L5-20R
NEMA 5-15/20R
Receptacle Detail1 x NEMA L5-20R
6 x NEMA 5-15/20R

Tripp Lite UPS 2200VA 1600W Smart Online Tower 110V / 120V USB DB9 SNMP RT – 2200VA/1600W – 4.5 Minute Full Load – 6 x NEMA 5-15/20R, 1 x NEMA L5-20R 1600W TOWER USB DB9 EXT RUN 7 OUT

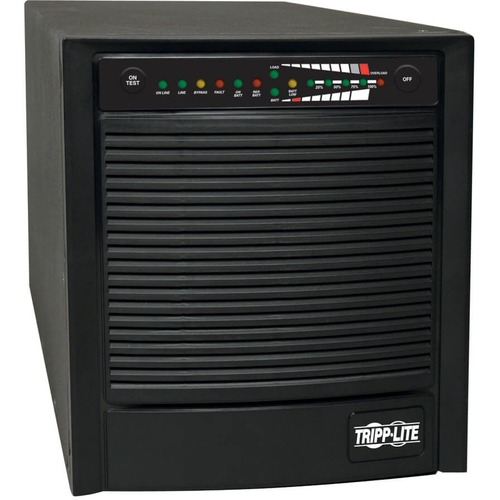

Tripp Lite’s Smart Online SU2200XLa on-line, double conversion UPS protects critical server, networking or telecommunications equipment from blackouts, brownouts, voltage fluctuations and surges in an attractive all-black upright tower form factor. Large capacity 2200VA/1600W UPS continuously converts incoming AC to DC, then back to perfect sine wave AC output at 120V AC (+/-2%). Removes harmonic distortion, fast electrical impulses, frequency fluctuations and other hard-to-solve power problems not addressed by other UPS systems. True sine wave output and zero transfer time offers guaranteed compatibility with all equipment types.

Tripp%20Lite SU2200XLA

Features

2200VA / 2.2kVA / 1600 watt on-line double-conversion tower UPS

110/120V +/-2% output at 50/60Hz, high efficiency economy mode option

Expandable runtime, Hot-swappable battery modules

USB, RS232 & EPO ports; support for SNMP/WEB card options

Front panel status LEDs with detailed load and battery metering

2 independently switchable output load banks

NEMA 5-20P input; L5-20R & 5-15/20R outlets

Guides & Documents

Brochure

Manual
