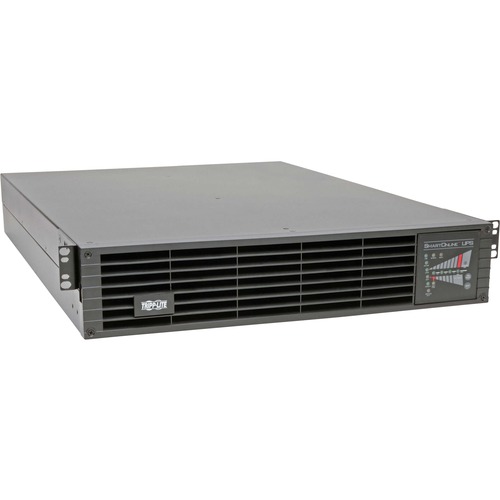

Tripp Lite UPS 3000VA 2500W International Smart Online Rackmount 200-240V – 2U Rack/Tower – 4.80 Hour Recharge – 6 Minute Stand-by – 220 V AC Input – 240 V AC, 208 V AC, 240 V AC, 220 V AC, 230 V AC Output – 10 2500W 208/240 230V 2U USB DB9 EPO

recently added items

x

Tripp Lite UPS 3000VA 2500W International Smart Online Rackmount 200-240V – 2U Rack/Tower – 4.80 Hour Recharge – 6 Minute Stand-by – 220 V AC Input – 240 V AC, 208 V AC, 240 V AC, 220 V AC, 230 V AC Output – 10 2500W 208/240 230V 2U USB DB9 EPO

VPN: SUINT3000RTXL2U UPC: 37332198495 SKU: NG9129

$3,102.32

SMART ONLINE INT UPS 3000VA RM 2500W 208/240 230V 2U USB DB9 EPO

SKU: 88d3a8e9bd7d Categories: , ,

Share:

Management
Network ManagementSNMP Manageable
Interfaces/Ports
USBYes
Serial PortYes
Battery Information
Hot SwappableYes
Backup/Run Time (Half Load)15 Minute
Backup/Run Time (Full Load)6 Minute
Typical Battery Recharge Time4.80 Hour
Technical Information
Bypass SwitchAutomatic
Emergency Power OFFYes
Transfer Time0 ns
Receptacle Detail10
Power Description
Input Voltage220 V AC
220 V AC
Output Voltage208 V AC
220 V AC
230 V AC
240 V AC
220 V AC
230 V AC
240 V AC
208 V AC
Input Current15 A
Physical Characteristics
Weight (Approximate)78.30 lb
Form FactorRack/Tower
Rack Height2U
Height3.5"
Width17.3"
Depth26"
Miscellaneous
Additional Information

    Input Receptacle: C20

    Output Receptacles:

    • 2 x C19
    • 8 x C13
Package Contents
  • SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS
  • 4 Post Rackmount Installation Brackets
  • C19 to C20 Power Cable
  • PowerAlert Software CD
  • USB Cable
  • Serial Cable
  • Owner's Manual with Warranty Information
Software IncludedPowerAlert Software
Certifications & Standards
    • UL1778
    • FCC Part 15 Category A (EMI)
    • TAA Compliant
Country of OriginChina
Environmentally FriendlyYes
Environmental CertificationRoHS
General Information
Product TypeDouble Conversion Online UPS
Manufacturer Part NumberSUINT3000RTXL2U
Manufacturer Website Addresshttp://www.tripplite.com
ManufacturerTripp Lite by Eaton
Product ModelSUINT3000RTXL2U
Product NameSmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS
Product LineSmartOnline
Brand NameTripp Lite

Tripp Lite UPS 3000VA 2500W International Smart Online Rackmount 200-240V – 2U Rack/Tower – 4.80 Hour Recharge – 6 Minute Stand-by – 220 V AC Input – 240 V AC, 208 V AC, 240 V AC, 220 V AC, 230 V AC Output – 10 2500W 208/240 230V 2U USB DB9 EPO
3000VA / 3kVA / 2500 watt on-line, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 66cm (26 inches). Full time sine wave 200/208/220/230/240V output with +/-2% voltage regulation. UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 120V and overvoltages to 288V. C20 inlet accepts a wide variety of optional cordsets. C19 and C13 output receptacles. Network management interfaces include USB port, DB9 serial port and SNMPWEBCARD slot. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Multi-stage metered current monitoring and battery charge status LEDs.

Tripp%20Lite SUINT3000RTXL2U

Features

3000VA / 3kVA / 2500 watt on-line double-conversion 2U rack / tower UPS

200/208/220/230/240V 50/60Hz output; High efficiency economy mode option

Expandable runtime; Hot-swap batteries

USB, RS232 & EPO ports; support for SNMP/WEB card options
