Tripp Lite UPS Smart Online 16000VA 14400W Rackmount 16kVA 200-240V Manual Bypass Hot Swap USB DB9 C19 12URM – 12U Rack/Tower – 8 Hour Recharge – 5.50 Minute Stand-by – 220 V AC Input – 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output – 8 230V 14400W 12URM USB DB9 HOT SWAP

Tripp Lite UPS Smart Online 16000VA 14400W Rackmount 16kVA 200-240V Manual Bypass Hot Swap USB DB9 C19 12URM – 12U Rack/Tower – 8 Hour Recharge – 5.50 Minute Stand-by – 220 V AC Input – 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output – 8 230V 14400W 12URM USB DB9 HOT SWAP

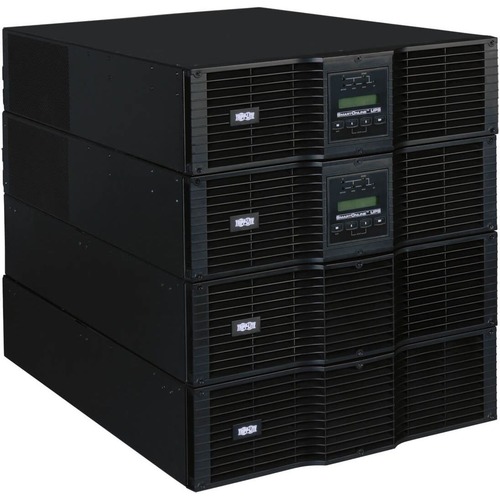

Tripp Lite SU16KRTG 16,000VA / 16kVA / 14,400 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 12U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 8kVA, and non-redundant operation at loads between 8 and 16kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.

Tripp%20Lite SU16KRTG

Features

16kVA / 16,000VA / 14,400W on-line double-conversion UPS, 0.9 power factor

200/208/220/230/240V 50/60Hz output, 96% Efficient Economy-mode option

Hot-swap power & battery modules, N+1 fault tolerance at loads up to 8kVA

USB, RS232, EPO ports, Support for SNMP/WEB & other card options

Front panel LEDs with detailed LCD monitoring and control screen

Expandable runtime with optional external battery packs

Hardwire input (3 wire), C19 outlets
