Tripp Lite UPS Smart Online 6kVA 6kW 220/230/240V Unity Power Factor C13/C19 3URM – 3U Rack/Tower – 3 Hour Recharge – 3 Minute Stand-by – 230 V AC Input – 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output – 6 x IEC 60320 C13, 4 x IEC 60320 C19, Hardwired – TAA Compliant 220/230/240V UNITY PF C13/C19

Tripp Lite UPS Smart Online 6kVA 6kW 220/230/240V Unity Power Factor C13/C19 3URM – 3U Rack/Tower – 3 Hour Recharge – 3 Minute Stand-by – 230 V AC Input – 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output – 6 x IEC 60320 C13, 4 x IEC 60320 C19, Hardwired – TAA Compliant 220/230/240V UNITY PF C13/C19

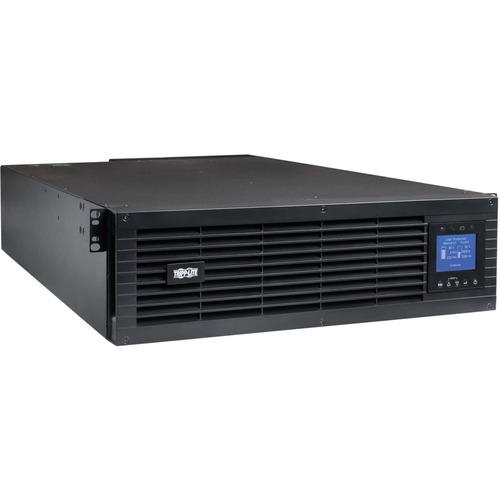

Protects Mission-Critical Rack-Mounted Equipment against Damage, Downtime and Data Loss Tripp Lite’s SU6KRT3UX Unity Power Factor UPS system protects connected equipment against damage, downtime and data loss due to power outages, voltage fluctuations and transient surges. Unity Power Factor design enables full 6000VA / 6000W output capacity. In double-conversion mode, this UPS system maintains perfect output by continuously converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with ±1% voltage regulation and zero transfer time between online and battery modes. Featuring true on-line, double-conversion operation, Tripp Lite’s SmartOnline® SU6KRT3UX provides the highest level of UPS power protection for critical server, network and telecom equipment. Reliable, Expandable Battery Backup UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The internal battery set provides 8.5 minutes of support at half load and 3 minutes at full load. During normal operation, incoming utility power keeps the battery fully charged so backup power will be available when needed. Advanced temperature-controlled battery charge management system provides efficient recharge and enhanced battery lifespan. For mission-critical applications demanding continuous uptime, the 6kVA UPS can provide expandable runtime with optional BP192V12RT3US external battery pack (sold separately). Battery-independent restart ensures automatic UPS power-up after lengthy power outages, even with expired batteries. Economy Mode Helps the Environment and Your Cash Flow Operates with >98% full-load efficiency in optional economy mode significantly reducing BTU heat output and operating energy costs. Intuitive Front-Panel Interface offers Convenient Monitoring Front-panel LEDs indicate line power, AC output, On-battery mode, and Fault conditions. The LCD readout with scroll controls supports visual monitoring of a variety of control options to support advanced UPS settings and configurations. The panel rotates for comfortable viewing in rack-mount or tower configuration. Pre-installed WEBCARDLXMINI Network Interface Offers 24/7 Access Pre-installed Java-free HTML5-based WEBCARDLXMINI interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. Advanced Communications Ports USB and DB9 ports with included cabling enable data-saving unattended shutdown of connected systems when used with Tripp Lite’s free downloadable PowerAlert® software. Capabilities include detailed monitoring of load levels, self-test data and utility power conditions. DB9 ports also support basic contact-closure monitoring to report On-battery and Low-battery status for legacy systems. Versatile Installation Options Hardware is included for mounting the complete 6kVA UPS system with internal batteries in 3U of space in an EIA-standard 19-inch 4-post rack. Use the optional 2POSTRMKITHD for 2-post rack mounting or the optional 2-9USTAND for mounting in an upright tower position. 2-Year Warranty and Environmentally Responsible Design The SU6KRT3UX comes with a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

Tripp%20Lite SU6KRT3UX

Features

Unity (1.0) power factor equalizes VA and wattage to safely support more equipment

Zero transfer time between on-line and battery modes for uninterrupted operation

Optional external battery packs provide additional runtime for applications requiring it

Pre-installed WEBCARDLXMINI network interface supports Auto Probe feature

ENERGY STAR-certified to save electricity, lower costs and protect the environment

2-year limited warranty

Guides & Documents

Brochure
