Tripp Lite UPS Smart Online 750VA 600W Rackmount 100V-120V USB DB9 Preinstalled WEBCARDLX 2URM – 750 VA/600 W – 100 V AC, 110 V AC, 120 V AC – 4 Minute Stand-by Time – 2U Tower/Rack Mountable – 6 x NEMA 5-15R 600W 2U USB DB9 EPO W/SNMPWEBCARD

Tripp Lite UPS Smart Online 750VA 600W Rackmount 100V-120V USB DB9 Preinstalled WEBCARDLX 2URM – 750 VA/600 W – 100 V AC, 110 V AC, 120 V AC – 4 Minute Stand-by Time – 2U Tower/Rack Mountable – 6 x NEMA 5-15R 600W 2U USB DB9 EPO W/SNMPWEBCARD

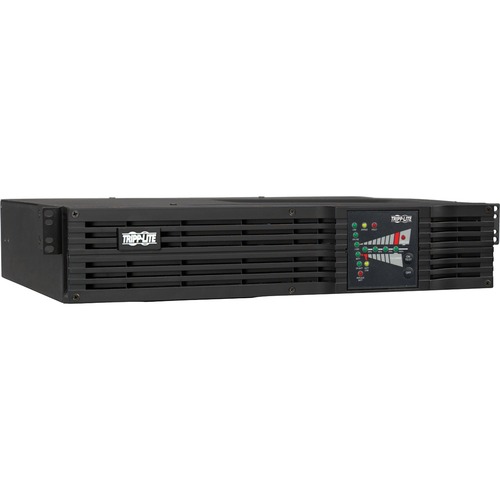

750VA online, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 13.5 inches. Extended runtime available with optional BP24V15RT2U (limit 1), BP24V28-2U (limit 1), BP24V70-3U (multi-pack compatible) and BP24V36-2US (multi-pack compatible) external battery packs. Full-time sine wave 100, 110 or 120V output with +/-2% voltage regulation. Online, double-conversion Uninterruptible Power Supply (UPS) actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150. NEMA 5-15P input plug; NEMA 5-15R output receptacles. Network-grade AC surge and noise suppression. Zero transfer time between AC and battery operation. Network management interfaces support simultaneous communications via USB port, DB9 serial port and pre-installed WEBCARDLX Network Interface. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces. PowerAlert monitoring software is available via free download. Emergency Power Off (EPO) interface. Integrated two-bank PDU switching supports load shedding and remote reboot of connected equipment. 3-stage metered current monitoring and battery charge status LEDs. LED display panel easily rotates for viewing in rackmount or tower configurations. Dataline surge suppression for dialup, DSL or network Ethernet connection. Utility power and voltage regulation LEDs. Audible alarm. Self-test. Fault-tolerant auto-bypass mode. 4-post rackmount accessories included; 2-9USTAND tower kit and 2POSTRMKITWM 2-post rack & wallmount accessories available. Field-replaceable, hot-swappable internal batteries and external battery packs.$250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).

Tripp%20Lite SU750RTXL2UN

Features

750VA /.75kVA / 600 watt on-line double-conversion 2U rack/tower UPS

100/110/120V +/-2% output at 50/60Hz, high efficiency economy mode option

Expandable runtime, Hot-swap batteries; 13.5 in / 34.3cm installed depth

USB, RS232 & EPO ports; Pre-installed WEBCARDLX Network Interface

Front panel status LEDs with detailed load and battery metering

2 independently switchable output load banks

NEMA 5-15P input; 5-15R outlets

Guides & Documents

Brochure
