Tripp Lite UPS Smart Online 8000VA 7200W Rackmount 8kVA 200V-240V USB DB9 Manual Bypass Hot Swap 6URM – 8000VA/6400W – 6 Minute Full Load – 4 x NEMA L6-20R, 2 x NEMA L6-30R 7200W 6URM USB DB9 HOT SWAP 6 OUT

recently added items

x

Tripp Lite UPS Smart Online 8000VA 7200W Rackmount 8kVA 200V-240V USB DB9 Manual Bypass Hot Swap 6URM – 8000VA/6400W – 6 Minute Full Load – 4 x NEMA L6-20R, 2 x NEMA L6-30R 7200W 6URM USB DB9 HOT SWAP 6 OUT

VPN: SU8000RT3U UPC: 37332138019 SKU: M46504

$8,869.54

SMART ONLINE UPS 8KVA 208/240V 7200W 6URM USB DB9 HOT SWAP 6 OUT

SKU: 8d3518d6731f Categories: , ,

Share:

Interfaces/Ports
Serial PortYes
Management
Network ManagementSNMP Manageable
Battery Information
Hot SwappableYes
Backup/Run Time (Half Load)15 Minute
Backup/Run Time (Full Load)6 Minute
Typical Battery Recharge Time8 Hour
Power Description
Input Voltage220 V AC
220 V AC
Output Voltage240 V AC
240 V AC
Physical Characteristics
Weight (Approximate)136.50 lb
Form FactorTower
Rack Height6U
Height5.2"
Width17.5"
Depth25"
Miscellaneous
Additional Information

Installed depth of power module extends to 32.5 inches once detachable PDU backplate is installed

Package Contents
  • SmartOnline SU8000RT3U 8000VA Tower/Rack Mountable UPS
  • 3U power module with detachable hot-swap PDU input/output panel and bypass switch
  • 3U external battery pack
  • Two sets of 4 post rackmount rails (one for each of the 3U components)
  • One set of tower stands for upright tower con
Software IncludedPowerAlert UPS Monitoring Software
Certifications & Standards
    • Tested to UL1778 (USA)
    • CSA (Canada)
    • CE (European Union)
    • NOM (Mexico)
    • Class A (Emissions)
    • ROHS Compliant
Country of OriginChina
Environmentally FriendlyYes
Environmental CertificationRoHS
Technical Information
Bypass SwitchManual
Emergency Power OFFYes
Plug/Connector TypeHardwired
Receptacle TypeNEMA L6-30R
NEMA L6-20R
Receptacle Detail2 x NEMA L6-20R
4 x NEMA L6-30R
General Information
Product TypeDouble Conversion Online UPS
Manufacturer Part NumberSU8000RT3U
Manufacturer Website Addresshttp://www.tripplite.com
ManufacturerTripp Lite by Eaton
Product ModelSU8000RT3U
Product NameSmartOnline SU8000RT3U 8000VA Tower/Rack Mountable UPS
Product LineSmartOnline
Brand NameTripp Lite

Tripp Lite UPS Smart Online 8000VA 7200W Rackmount 8kVA 200V-240V USB DB9 Manual Bypass Hot Swap 6URM – 8000VA/6400W – 6 Minute Full Load – 4 x NEMA L6-20R, 2 x NEMA L6-30R 7200W 6URM USB DB9 HOT SWAP 6 OUT

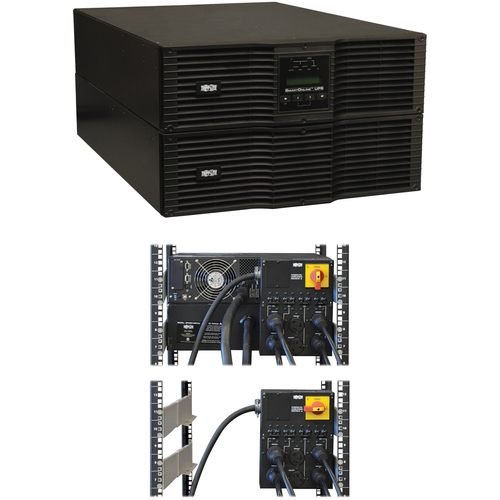

Tripp Lite SU8000RT3U 8000VA / 8kVA / 7200 watt online, double-conversion UPS system offers complete power protection for critical network applications. This system delivers online, double-conversion UPS protection with zero transfer time, suitable for advanced networking applications. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included detachable PDU with manual bypass switch enables hot-swappable replacement of entire UPS power module with no interruption to connected equipment. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.

Tripp%20Lite SU8000RT3U

Features

8kVA / 8000VA / 7200W on-line double-conversion UPS; 0.9 power factor

200/208/220/230/240V 50/60Hz output; Economy mode option

Included maintenance bypass switch enables live replacement of UPS with zero downtime

6U Rack/Tower compatible; Hot-swap power and battery modules

USB, RS232 & EPO ports; SNMP/WEB and contact-closure card options

Guides & Documents
